Spår: N Minitrix

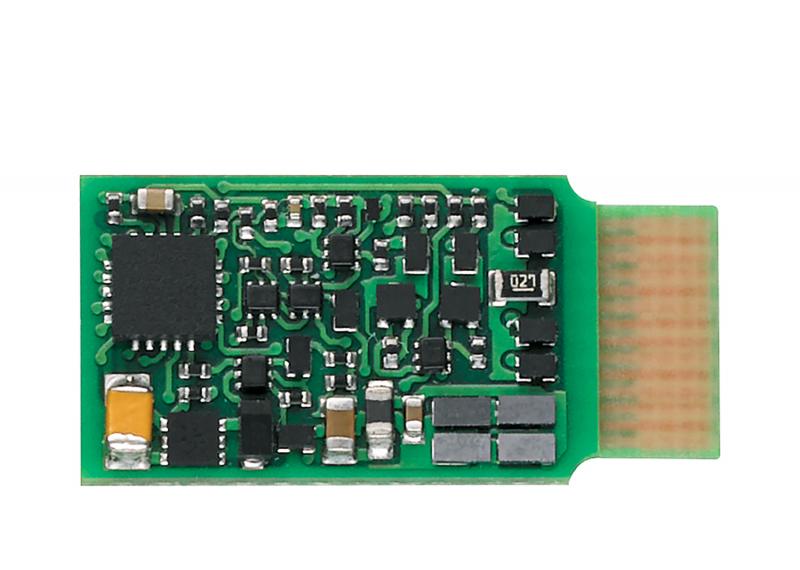

Trix Minitrix 66856 Locomotive Decoder, mtc 14-Pin Interface Connector Nyhet 2020 Förboka ditt exemplar. Planerad leverans under 2024
This is a receiver for all DC locomotives with a total current draw of up to 1000 milliamps (motor 500 milliamps, each light 200 milliamps). It can be used for digital locomotives with an mtc 14-pin digital interface connector. It can be used universally in the mfx and DCC formats. The decoder has automatic analog recognition. It also has automatic load regulation. It has connections for a light function. It also has overload protection. DCC operation: speed level selection 14/28/126 speed levels. Addresses optionally short up to 127 and long up to 10239. Braking operation: DC same/opposite poles, braking diodes, asymmetrical track signal, braking generators. Dimensions approximately 14 x 9 x 2 mm / 1/2" x 3/8" x 1/16".
This is a rugged multi-protocol conversion decoder, which is protected against short circuits between the motor and track. It has a safety shutoff feature in the event of an overload, excessive temperature, and short circuit. It has newly developed motor regulation for extremely smooth operation of many available DC N Gauge motors. The locomotive will continue to run with the same speed after an interruption to the current. The decoder has a SUSI-controlled acceleration delay feature (SUSI WAIT). It also has single or two-part braking routes.
Characteristics in analog operation: regulated and unregulated possible, maximum speed limit.
